The Diodes Zener Diode 18V 2% 350mW SOT-23 is a surface mount device with a maximum operating temperature range of -65°C to 150°C. It has a maximum power dissipation of 350mW and a zener voltage of 18V with a tolerance of 2%. The device is packaged in a SOT-23 package and is lead free and RoHS compliant.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BZX84B18-7-F technical specifications.
General
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| ESD Protection | No |
| Height | 1.1mm |
| Impedance | 45R |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 350mW |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Tolerance | 2% |
| Width | 1.4mm |
| Zener Voltage | 18V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BZX84B18-7-F Datasheet
Download the complete datasheet for Diodes BZX84B18-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

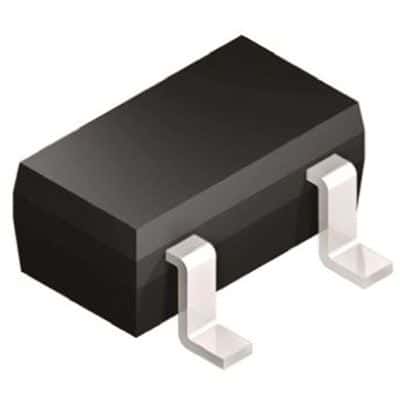

Product Images
