Surface mount Zener diode with a 3.3V Zener voltage and 2% tolerance. Features 350mW maximum power dissipation and a 5µA maximum reverse leakage current. Packaged in a SOT-23 plastic case with tin, matte contact plating, suitable for tape and reel packaging. Operating temperature range from -65°C to 150°C.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BZX84B3V3-7-F technical specifications.
General
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Diode Type | ZENER |
| ESD Protection | No |
| Height | 1mm |
| Impedance | 95R |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 350mW |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 2% |
| Voltage Tolerance | 2% |
| Weight | 0.00031oz |
| Width | 2.4mm |
| Zener Current | 5uA |
| Zener Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BZX84B3V3-7-F Datasheet
Download the complete datasheet for Diodes BZX84B3V3-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

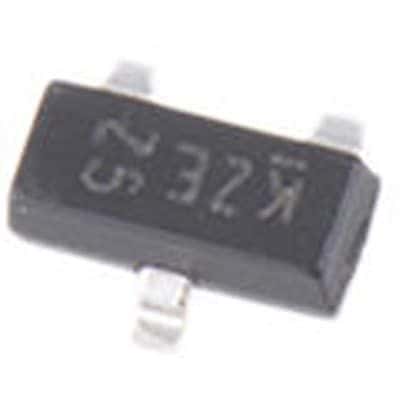

Product Images
