Surface mount Zener diode featuring a 2.7V DC rated voltage with a 5% voltage tolerance. This unidirectional silicon diode offers 200mW power dissipation and a 5mA Zener current. Encased in an ultra-small SOT-323 plastic package with tin-matte contact plating, it operates within a -65°C to 125°C temperature range. RoHS compliant and lead-free, this component is supplied on tape and reel.
PackageSOT-323
Voltage Rating2.7V
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Diodes BZX84C2V7W-7-F technical specifications.
General
Package/Case
SOT-323
Contact Plating
Tin, Matte
ESD Protection
No
Height
1mm
Impedance
100R
Lead Free
Lead Free
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Reverse Current
20uA
Max Reverse Leakage Current
20uA
Mount
Surface Mount
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
200mW
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
7%
DC Rated Voltage
2.7V
Voltage Tolerance
5%
Weight
0.000212oz
Width
1.35mm
Working Voltage
2.7V
Zener Current
5mA
Zener Voltage
2.7V
Compliance
RoHS
Compliant
Datasheet
Diodes BZX84C2V7W-7-F Datasheet
Download the complete datasheet for Diodes BZX84C2V7W-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

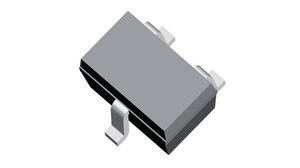

Product Images
