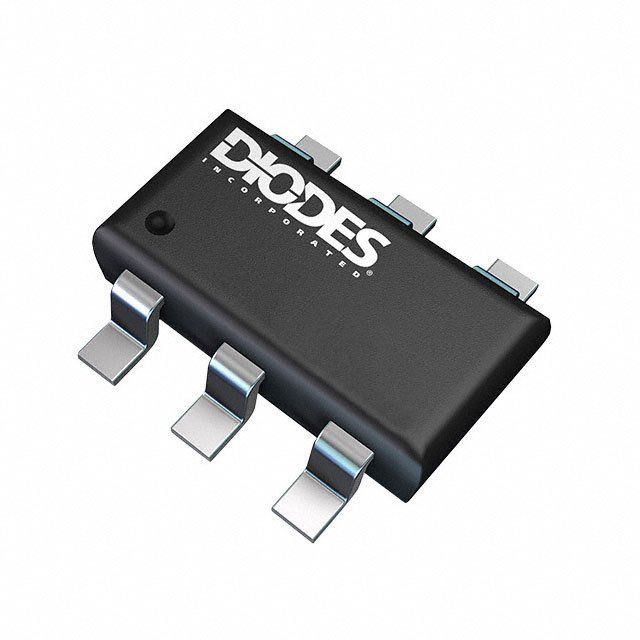

Unidirectional transient voltage suppressor diode, featuring 4 channels and a 1.2pF capacitance. This silicon component offers ESD protection with a 10V clamping voltage and 6V minimum breakdown voltage. Designed for surface mount applications, it operates within a -65°C to 150°C temperature range and supports a 3.3V working voltage. The device boasts a 300mW maximum power dissipation and 5A maximum surge current capability, packaged in a compact TSOT26 (SOT-23-6) with tin matte plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes D1213A-04TS-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes D1213A-04TS-7 technical specifications.
| Capacitance | 1.2pF |
| Package/Case | SOT-23-6 |
| Clamping Voltage | 10V |
| Contact Plating | Tin, Matte |
| Depth | 1.6mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2.9mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 5A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Reverse Standoff Voltage | 3.3V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| Width | 1.6mm |
| Working Voltage | 3.3V |
| RoHS | Compliant |
