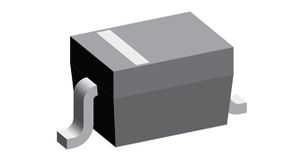

Bidirectional Transient Voltage Suppressor (TVS) diode offering 90W peak pulse power and 3A peak pulse current. Features a 20V reverse standoff voltage and a minimum breakdown voltage of 21V. Designed for surface mount with a compact 1.8mm x 1.4mm x 1.1mm plastic package. Operates across a wide temperature range from -65°C to 150°C, with low 100nA reverse leakage. Provides ESD protection and is RoHS and REACH SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes D20V0L1B2WS-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes D20V0L1B2WS-7 technical specifications.
| Contact Plating | Tin, Matte |
| Diode Type | ZENER |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Min Breakdown Voltage | 21V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 100nA |
| Moisture Sensitivity Level | 1 |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 3A |
| Peak Pulse Power | 90W |
| Power Line Protection | No |
| Reach SVHC Compliant | Yes |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | Yes |
| Width | 1.4mm |
| RoHS | Compliant |
