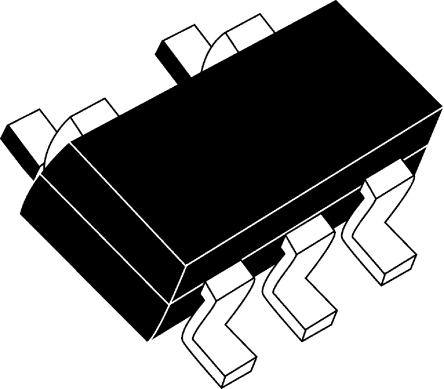

Bidirectional Transient Voltage Suppressor (TVS) diode featuring 4 elements for robust ESD protection. Offers a 5V reverse standoff voltage and 6V minimum breakdown voltage, with a clamping voltage of 14V. Delivers 84W peak pulse power and 6A peak pulse current. Surface mountable in a SOT-25 package with tin, matte plating. Operates across a wide temperature range of -65°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes D5V0L4B5SO-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes D5V0L4B5SO-7 technical specifications.
| Capacitance | 20pF |
| Package/Case | SOT-25 |
| Clamping Voltage | 14V |
| Contact Plating | Tin, Matte |
| Depth | 1.6mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 3mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 4 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 6A |
| Peak Pulse Power | 84W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Width | 1.7mm |
| Working Voltage | 5V |
| RoHS | Compliant |
