Technical Specifications
Diodes DDZ13CSF-7 technical specifications.
General
| Height | 0.75mm |
| Impedance | 35R |
| Length | 2.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 70nA |
| Max Reverse Leakage Current | 70nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Tolerance | 3% |
| Voltage Tolerance | 2.5% |
| Width | 1.25mm |
| Zener Current | 70nA |
| Zener Voltage | 13V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DDZ13CSF-7 Datasheet
Download the complete datasheet for Diodes DDZ13CSF-7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

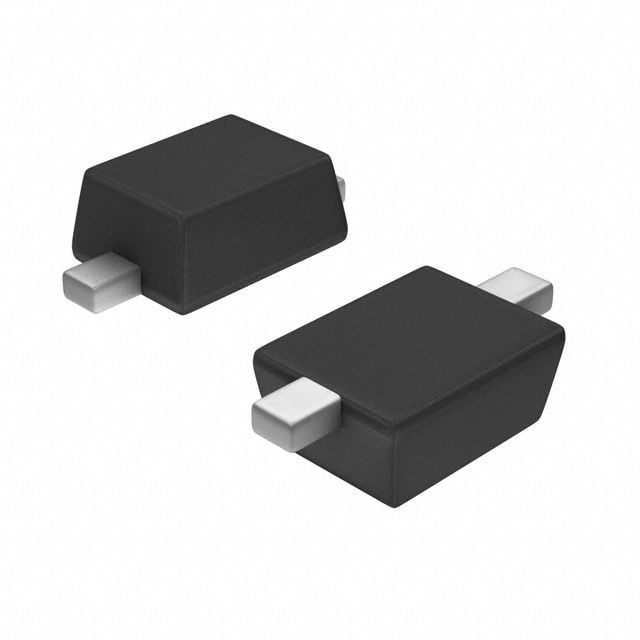

Product Images
