Technical Specifications
Diodes DDZ9696S-7 technical specifications.
General
| Height | 1mm |
| Length | 1.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Weight | 0.000173oz |
| Width | 1.4mm |
| Zener Voltage | 9.1V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DDZ9696S-7 Datasheet
Download the complete datasheet for Diodes DDZ9696S-7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

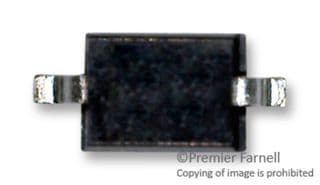

Product Images
