General purpose rectifier diode featuring Schottky barrier technology. This single-phase, single-element device offers a 1A forward current and 60V repetitive reverse voltage. Designed for surface mount applications, it boasts a low capacitance of 67pF and a peak non-repetitive surge current rating of 50A. Operating across a wide temperature range from -65°C to 150°C, this RoHS compliant component is packaged in tape and reel.
Capacitance67pF
Current Rating1A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Diodes DFLS160-7 technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 67pF |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 0.98mm |
| Lead Free | Lead Free |
| Length | 2.8mm |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 60V |
| Max Reverse Current | 100uA |
| Max Reverse Voltage (DC) | 60V |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 60V |
| Width | 1.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DFLS160-7 Datasheet
Download the complete datasheet for Diodes DFLS160-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

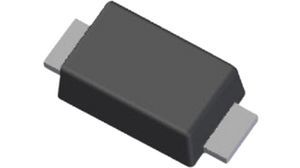

Product Images
