Schottky rectifier diode for general-purpose rectification. Features a 2A forward current rating and 30V repetitive reverse voltage. Designed for surface mount applications with a compact POWERDI123 package, measuring 2.8mm x 1.78mm x 0.98mm. Offers a maximum forward surge current of 33A and a low capacitance of 76pF. Operates across a temperature range of -40°C to 125°C with 1.67W maximum power dissipation. This RoHS compliant component is supplied on tape and reel.
Capacitance76pF
Current Rating2A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Diodes DFLS230L-7 technical specifications.
General
| Average Rectified Current | 2A |
| Capacitance | 76pF |
| Current Rating | 2A |
| Forward Current | 2A |
| Height | 0.98mm |
| Lead Free | Lead Free |
| Length | 2.8mm |
| Max Forward Surge Current (Ifsm) | 33A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.67W |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 1mA |
| Max Reverse Voltage (DC) | 30V |
| Mount | Surface Mount |
| Output Current | 2A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 33A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
| Width | 1.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DFLS230L-7 Datasheet
Download the complete datasheet for Diodes DFLS230L-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

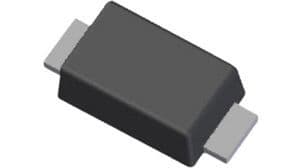

Product Images
