Technical Specifications
Diodes DFLS260-7 technical specifications.
General
| Average Rectified Current | 2A |
| Package/Case | SMD/SMT |
| Forward Current | 2A |
| Height | 0.98mm |
| Length | 2.8mm |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 60V |
| Max Reverse Current | 100uA |
| Max Reverse Voltage (DC) | 60V |
| Mount | Surface Mount, Through Hole |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DFLS260 |
| Width | 1.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DFLS260-7 Datasheet
Download the complete datasheet for Diodes DFLS260-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

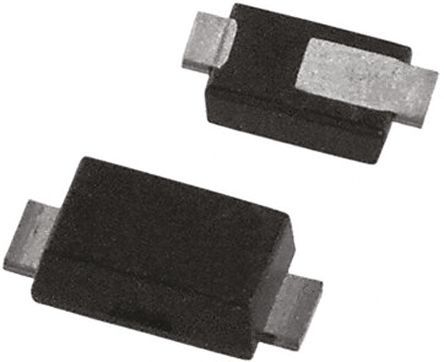

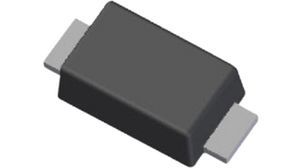

Product Images
