General purpose rectifier diode, 1A average rectified current, 1kV repetitive reverse voltage. Features 15pF capacitance, 30A peak non-repetitive surge current, and a maximum operating temperature of 150°C. Packaged in a MELF-2 case for surface mounting, this RoHS compliant component offers a compact 2.6mm diameter and 2.64mm height.
PackageMELF
Voltage100V
Current1A
Capacitance15pF
Quick Jump:
Technical Specifications
Diodes DL4007-13-F technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 15pF |
| Package/Case | MELF |
| Current | 1A |
| Current Rating | 1A |
| Diameter | 2.6mm |
| Forward Current | 1A |
| Height | 2.64mm |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 1kV |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Voltage (DC) | 1kV |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage | 100V |
| DC Rated Voltage | 1kV |
| Weight | 0.008818oz |
| Width | 2.64mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DL4007-13-F Datasheet
Download the complete datasheet for Diodes DL4007-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

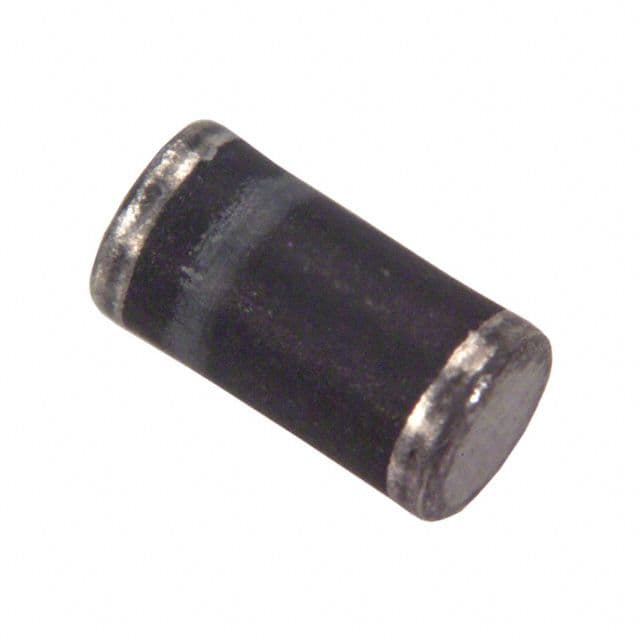

Product Images
