Surface mount N-channel and P-channel dual JFET with 20V Drain to Source Voltage (Vdss) and 845mA Continuous Drain Current (ID). Features low Drain-source On Resistance (Rds On) up to 450mR, ideal for small signal applications. Operates across a wide temperature range from -55°C to 150°C. Packaged in an ultra-small SOT-363 plastic package, this RoHS compliant component offers fast switching speeds with turn-on delay times as low as 5.1ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMG1016UDW-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

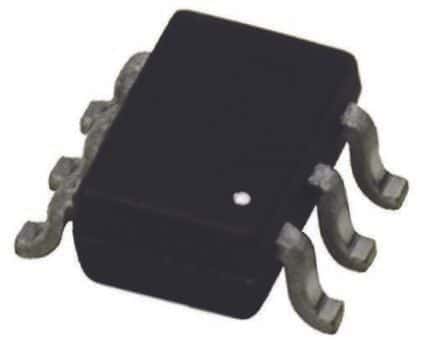

Diodes DMG1016UDW-7 technical specifications.
| Package/Case | SOT-363 |
| Continuous Drain Current (ID) | 845mA |
| Drain to Source Resistance | 1.05R |
| Drain to Source Voltage (Vdss) | 20V |
| Drain-source On Resistance-Max | 750mR |
| Fall Time | 12.3ns |
| FET Type | N and P-Channel |
| Gate to Source Voltage (Vgs) | 6V |
| Height | 1mm |
| Input Capacitance | 60.67pF |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 330mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL, P-CHANNEL |
| Power Dissipation | 330mW |
| Radiation Hardening | No |
| Rds On Max | 450mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 26.7ns |
| Turn-On Delay Time | 5.1ns |
| Weight | 0.000212oz |
| Width | 1.35mm |
| RoHS | Compliant |
