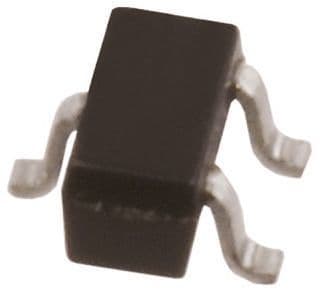

N-Channel Silicon Metal-oxide Semiconductor FET, 20V Drain-Source Voltage (Vdss) and 230mA Continuous Drain Current (ID). Features 3 Ohm maximum Drain-Source On Resistance (Rds On Max) and 1V Threshold Voltage. This single-element JFET offers fast switching with turn-on delay of 3.8ns and fall time of 15.2ns. Housed in an ultra-small, 0.8mm height, 1.7mm length, 0.85mm width SOT-523 surface mount plastic package. Maximum power dissipation is 300mW with an operating temperature range of -55°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMN26D0UT-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes DMN26D0UT-7 technical specifications.
| Package/Case | SOT-523 |
| Continuous Drain Current (ID) | 230mA |
| Drain to Source Resistance | 3R |
| Drain to Source Voltage (Vdss) | 20V |
| Drain-source On Resistance-Max | 3R |
| Fall Time | 15.2ns |
| Gate to Source Voltage (Vgs) | 10V |
| Height | 0.8mm |
| Input Capacitance | 14.1pF |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 3R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 13.4ns |
| Turn-On Delay Time | 3.8ns |
| Weight | 7.1E-05oz |
| Width | 0.85mm |
| RoHS | Compliant |
