Technical Specifications
Diodes DMN3135LVT-7 technical specifications.
General
| Package/Case | SOT-23-6 |
| Continuous Drain Current (ID) | 3.5A |
| Drain to Source Resistance | 35mR |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 2.5ns |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 305pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 840mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 60mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 13.1ns |
| Turn-On Delay Time | 2.6ns |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DMN3135LVT-7 Datasheet
Download the complete datasheet for Diodes DMN3135LVT-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

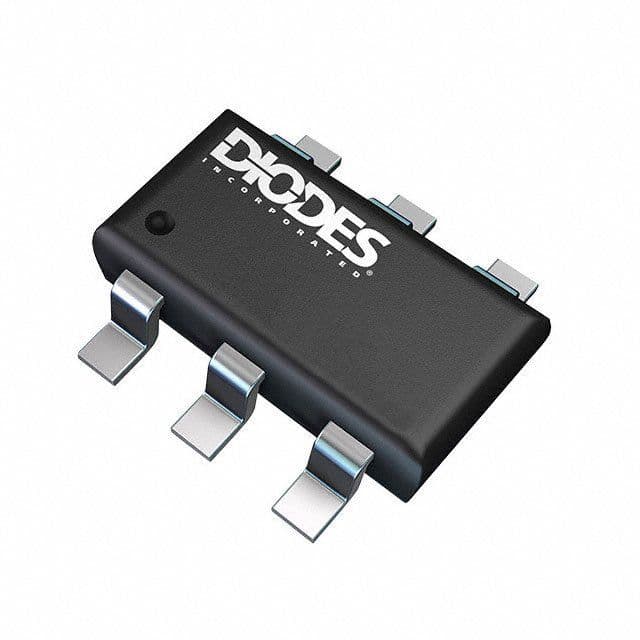

Product Images
