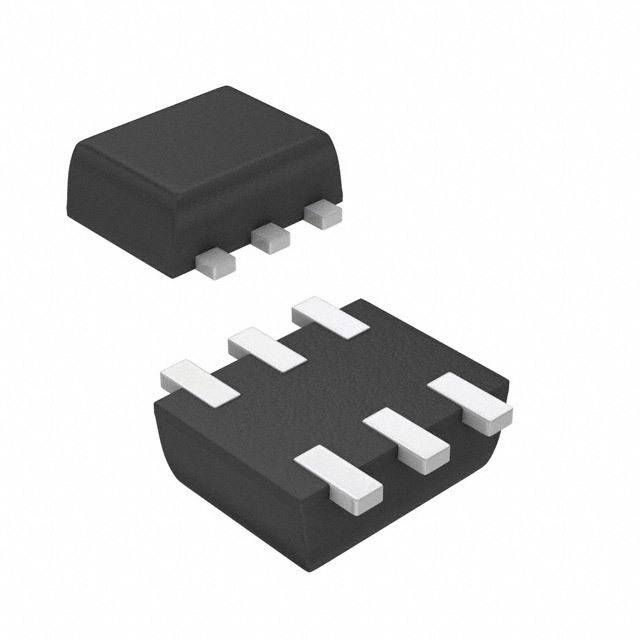

N-Channel Silicon Metal-oxide Semiconductor FET, 2-Element, 2-Channel, Surface Mount device in a SOT-563 package. Features 50V Drain to Source Voltage (Vdss), 280mA Continuous Drain Current (ID), and 2 Ohm Drain-source On Resistance-Max. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 250mW. Includes 50pF input capacitance and 1V threshold voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMN5L06VK-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes DMN5L06VK-7 technical specifications.
| Package/Case | SOT-563 |
| Continuous Drain Current (ID) | 280mA |
| Current Rating | 280mA |
| Drain to Source Resistance | 2R |
| Drain to Source Voltage (Vdss) | 50V |
| Drain-source On Resistance-Max | 2R |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.6mm |
| Input Capacitance | 50pF |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Package Quantity | 3000 |

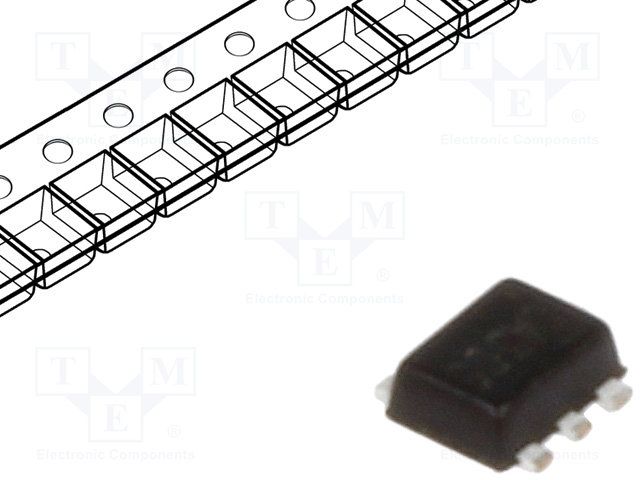

| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 250mW |
| Rds On Max | 2R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 1V |
| DC Rated Voltage | 50V |
| Weight | 0.000106oz |
| Width | 1.2mm |
| RoHS | Compliant |
