P-channel JFET, surface mount, in a 3-pin SOT-23 plastic package. Features 12V drain-source voltage (Vdss) and 4A continuous drain current (ID). Offers low 31mR drain-to-source on-resistance (Rds On Max). Operates from -55°C to 150°C with 800mW max power dissipation. Includes 1.357nF input capacitance and fast switching times with turn-on delay of 15.7ns and turn-off delay of 91.2ns. Lead-free and RoHS compliant.
PackageSOT-23
MountingSurface Mount
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Diodes DMP1045U-7 technical specifications.
General
Package/Case
SOT-23
Continuous Drain Current (ID)
4A
Drain to Source Resistance
31mR
Drain to Source Voltage (Vdss)
12V
Fall Time
106.9ns
Gate to Source Voltage (Vgs)
8V
Height
1.1mm
Input Capacitance
1.357nF
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
800mW
Mount
Surface Mount
Number of Channels
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Radiation Hardening
No
Rds On Max
31mR
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Turn-Off Delay Time
91.2ns
Turn-On Delay Time
15.7ns
Weight
0.000282oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Diodes DMP1045U-7 Datasheet
Download the complete datasheet for Diodes DMP1045U-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

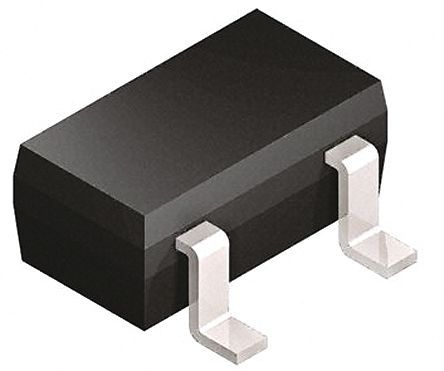

Product Images
