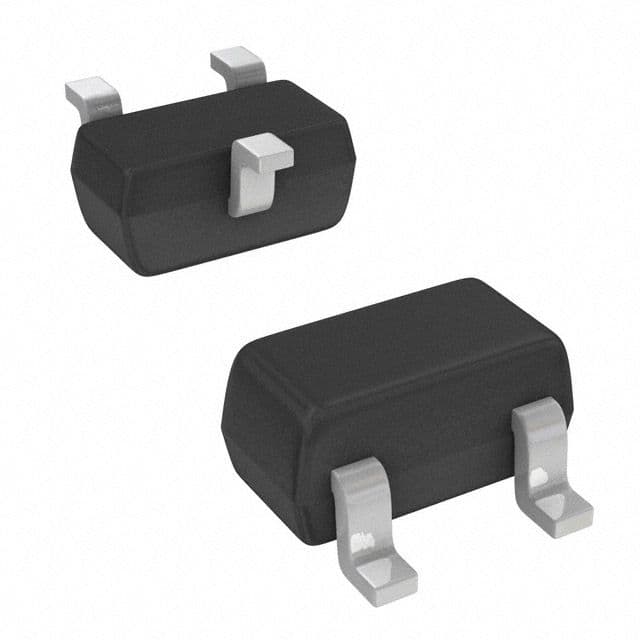

P-channel, silicon, Metal-oxide Semiconductor FET designed for small signal applications. Features a 20V Drain-Source Voltage (Vdss) and a continuous Drain Current (ID) of 430mA. Offers a low Drain-Source On Resistance (Rds On) of 1.1 Ohms. Packaged in a compact SOT-523 surface mount plastic package, this component operates within a temperature range of -55°C to 150°C and has a maximum power dissipation of 150mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMP2004TK-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-523 |
| Continuous Drain Current (ID) | 430mA |
| Drain to Source Resistance | 1.1R |
| Drain to Source Voltage (Vdss) | 20V |
| Drain-source On Resistance-Max | 1.1R |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.75mm |
| Input Capacitance | 175pF |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Rds On Max | 1.1R |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
| RoHS | Compliant |
