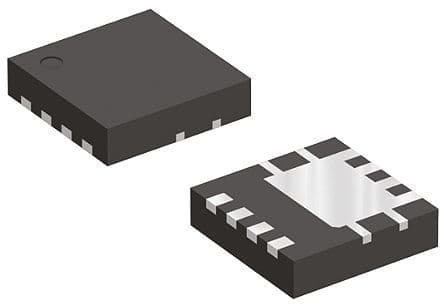

P-channel power MOSFET featuring a 20V drain-to-source voltage and 54A continuous drain current. Offers low on-resistance with Rds On Max of 8mR and Drain to Source Resistance of 17mR. Designed for surface mounting with a compact 3.35mm x 3.35mm x 0.85mm footprint. Operates across a wide temperature range from -55°C to 150°C, with a maximum power dissipation of 41W. Includes fast switching characteristics with a turn-on delay time of 22ns and fall time of 124ns. This component is lead-free, RoHS compliant, and REACH SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMP2008UFG-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 54A |
| Drain to Source Resistance | 17mR |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 124ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.85mm |
| Input Capacitance | 6.909nF |
| Lead Free | Lead Free |
| Length | 3.35mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 41W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Rds On Max | 8mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 291ns |
| Turn-On Delay Time | 22ns |
| Weight | 0.00254oz |
| Width | 3.35mm |
| RoHS | Compliant |
