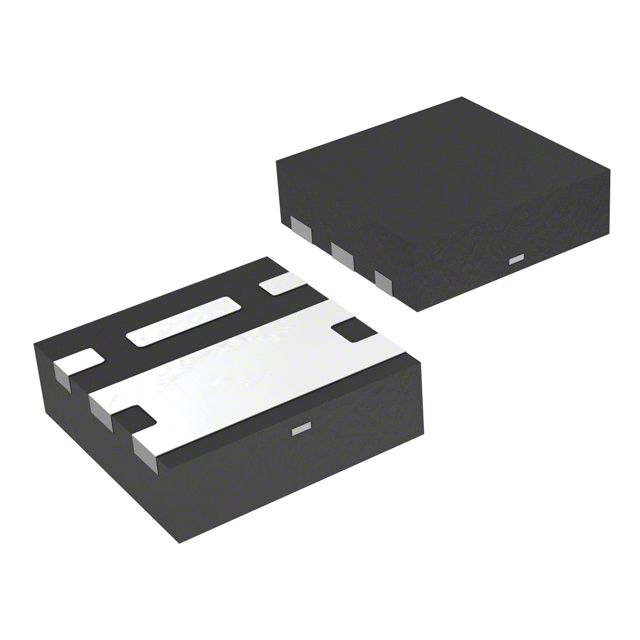

P-channel, silicon, metal-oxide semiconductor FET for small signal applications. Features a maximum drain-source voltage of 25V and a continuous drain current of 6.7A. Offers a low drain-source on-resistance of 27mR (max). Operates across a temperature range of -55°C to 150°C. Packaged in a U-DFN2020-6 surface-mount plastic package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMP2039UFDE-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 6.7A |
| Drain to Source Resistance | 20mR |
| Drain to Source Voltage (Vdss) | 25V |
| Drain-source On Resistance-Max | 27mR |
| Fall Time | 80.5ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.58mm |
| Input Capacitance | 2.53nF |
| Lead Free | Lead Free |
| Length | 2.05mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 800mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 27mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 137.6ns |
| Turn-On Delay Time | 15.1ns |
| Width | 2.05mm |
| RoHS | Compliant |
