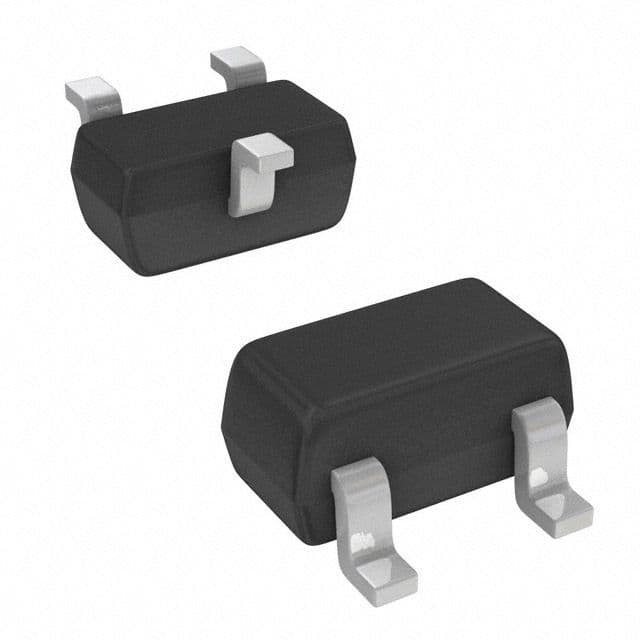

P-Channel JFET, designed for small signal applications. Features a continuous drain current of 650mA and a drain-to-source voltage of 20V. Offers a low drain-to-source on-resistance of 495mR. Operates within a temperature range of -55°C to 150°C, with a maximum power dissipation of 240mW. Packaged in a compact SOT-523 surface-mount plastic package, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMP21D0UT-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes DMP21D0UT-7 technical specifications.
| Package/Case | SOT-523 |
| Continuous Drain Current (ID) | 650mA |
| Drain to Source Resistance | 495mR |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 18.5ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.8mm |
| Input Capacitance | 80pF |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 240mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 495mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 31.7ns |
| Turn-On Delay Time | 7.1ns |
| Weight | 7.1E-05oz |
| Width | 0.85mm |
| RoHS | Compliant |
