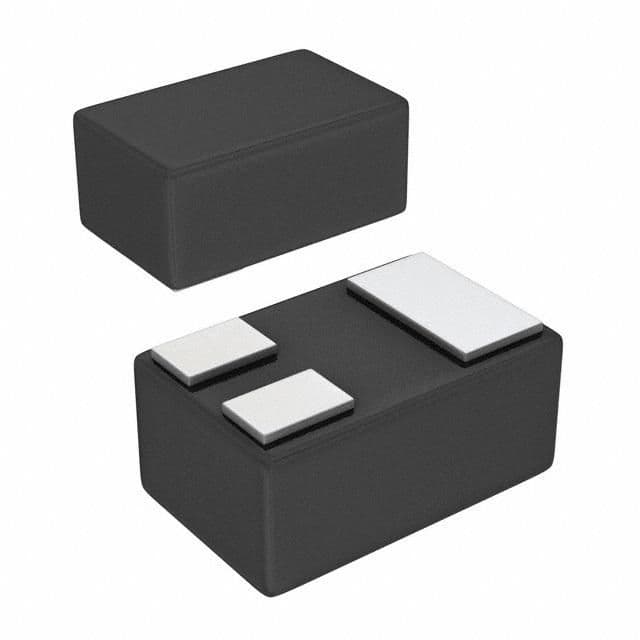

The DMP56D0UFB-7 is a surface mount N-Channel JFET with a maximum operating temperature range of -55°C to 150°C. It has a continuous drain current of 200mA and a drain to source voltage of 50V. The device is packaged in a DFN package and is RoHS compliant. The JFET has a maximum power dissipation of 425mW and a gate to source voltage of 8V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMP56D0UFB-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes DMP56D0UFB-7 technical specifications.
| Package/Case | DFN |
| Continuous Drain Current (ID) | 200mA |
| Drain to Source Voltage (Vdss) | 50V |
| Fall Time | 15ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.48mm |
| Input Capacitance | 50.54pF |
| Length | 1.08mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 425mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rds On Max | 6R |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 21.9ns |
| Turn-On Delay Time | 4.46ns |
| Width | 0.675mm |
| RoHS | Compliant |
