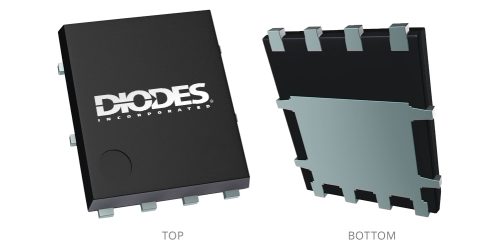

This N-channel enhancement mode MOSFET is rated for 100 V drain-source voltage and ±20 V gate-source voltage. It supports continuous drain current up to 20 A at 25°C ambient and 100 A at 25°C case, with maximum on-resistance of 4.3 mΩ at 10 V gate drive and 6.2 mΩ at 4.5 V gate drive. Typical total gate charge is 80 nC and typical input capacitance is 4843 pF at 50 V. The device is supplied in the PowerDI5060-8 package and is intended for motor control, DC-DC converters, and power management applications. It has a lead-free finish, is RoHS compliant, and is identified as a green device that is halogen and antimony free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes DMTH10H4M5LPS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes DMTH10H4M5LPS technical specifications.
| AEC Qualified | No |
| Polarity | N |
| ESD Diodes | No |
| Drain-Source Voltage | 100V |
| Gate-Source Voltage | ±20V |
| Continuous Drain Current @Ta=25°C | 20A |
| Continuous Drain Current @Tc=25°C | 100A |
| Power Dissipation @Ta=25°C | 2.7W |
| Power Dissipation @Tc=25°C | 136W |
| RDS(on) Max @VGS=10V | 4.3mΩ |
| RDS(on) Max @VGS=4.5V | 6.2mΩ |
| Gate Threshold Voltage Max | 2.5V |
| Total Gate Charge Typ @VGS=10V | 80nC |
| Input Capacitance Typ | 4843pF |
| Input Capacitance Test Voltage | 50V |
| RoHS | Compliant |
| Lead-free Finish | Yes |
| Halogen Free | Yes |
| Antimony Free | Yes |
