Diodes
DSS2540M-7B
Small Signal Bipolar Transistor, 0.5A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, LEADLESS, ULTRA SMALL, PLASTIC, DFN1006-3, 3 PIN
PackageDFN
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Diodes DSS2540M-7B technical specifications.
General
Package/Case
DFN
Collector Base Voltage (VCBO)
40V
Collector Emitter Breakdown Voltage
40V
Collector Emitter Saturation Voltage
250mV
Collector-emitter Voltage-Max
250mV
Continuous Collector Current
500mA
Emitter Base Voltage (VEBO)
6V
Gain Bandwidth Product
300MHz
Max Breakdown Voltage
40V
Max Collector Current
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Surface Mount
Package Quantity
10000
Packaging
Tape and Reel
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Transition Frequency
300MHz
Compliance
RoHS
Compliant
Datasheet
Diodes DSS2540M-7B Datasheet
Download the complete datasheet for Diodes DSS2540M-7B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

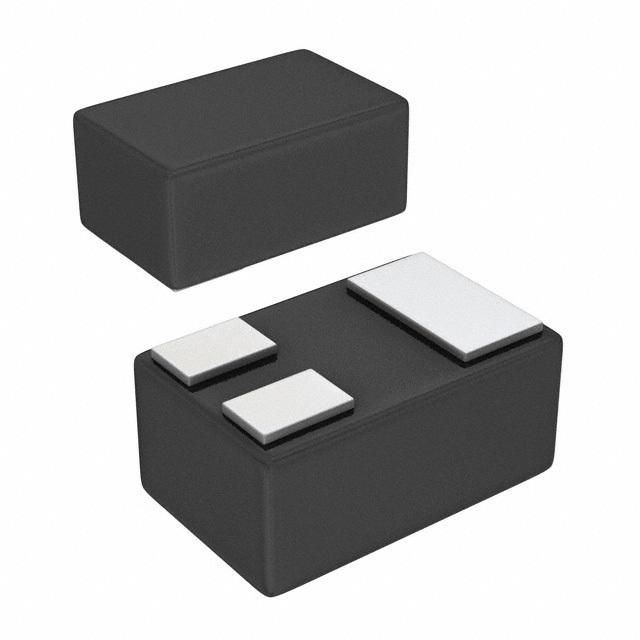

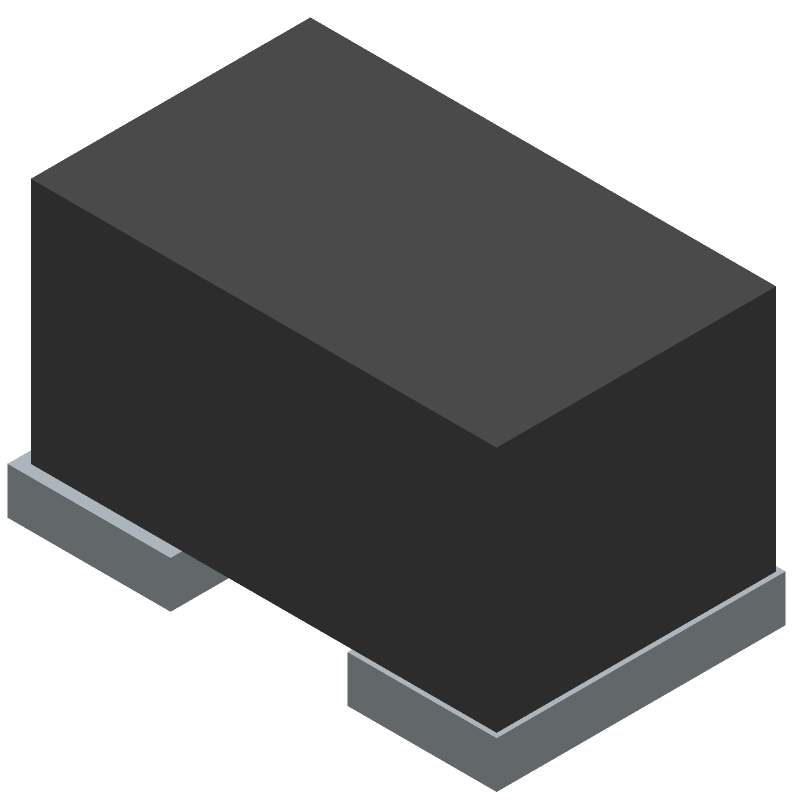

Product Images
