NPN bipolar junction transistor (BJT) for small signal applications. Features a 40V collector-emitter breakdown voltage (VCEO) and a maximum collector current of 2A. Offers a minimum DC current gain (hFE) of 350 and a transition frequency of 100MHz. Packaged in a 3-pin SOT-23 surface-mount plastic package. Operates within a temperature range of -55°C to 150°C.
Frequency100MHz
PackageSOT-23
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Diodes DSS4240T-7 technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 40V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | 320mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Collector-emitter Voltage-Max | 320mV |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| Height | 1mm |
| hFE Min | 350 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 2A |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 600mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Transition Frequency | 100MHz |
| Weight | 0.000282oz |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes DSS4240T-7 Datasheet
Download the complete datasheet for Diodes DSS4240T-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

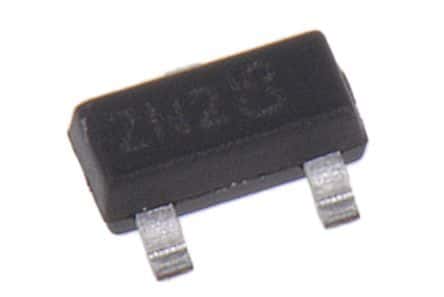

Product Images
