General purpose rectifier diode with 1A average rectified current and 150V repetitive reverse voltage. Features include 1A forward current, 30A peak non-repetitive surge current, and 25ns reverse recovery time. This silicon diode operates from -55°C to 150°C and is housed in a lead-free SMA plastic package for surface mounting. Capacitance is 10pF, with a maximum reverse current of 5uA.
PackageSMA
Capacitance10pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes ES1C-13-F technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 10pF |
| Package/Case | SMA |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 150V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 150V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 25ns |
| Reverse Recovery Time-Max | 25ns |
| Reverse Voltage (DC) | 150V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 150V |
| Weight | 0.002258oz |
| Width | 2.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ES1C-13-F Datasheet
Download the complete datasheet for Diodes ES1C-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

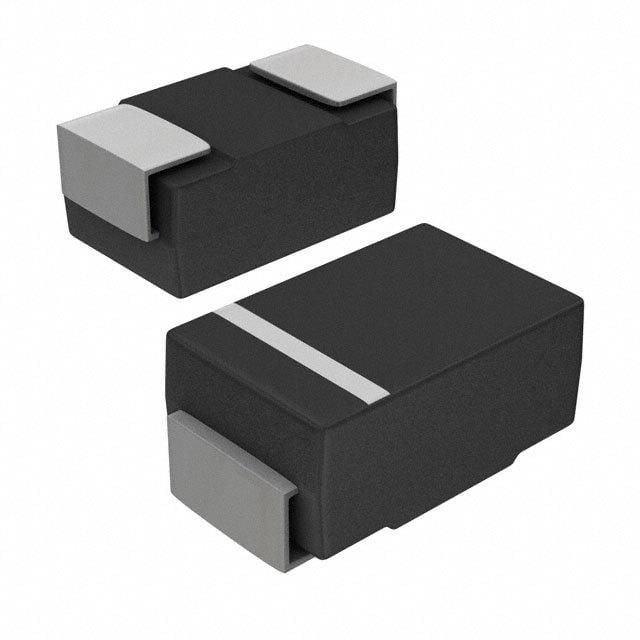

Product Images
