The FMMT2222ATA is a surface mount NPN bipolar junction transistor with a collector-emitter breakdown voltage of 40V and a maximum collector current of 600mA. It has a maximum power dissipation of 330mW and operates over a temperature range of -55°C to 150°C. The transistor is packaged in a TO-236-3 case and is available in a cut tape package. It is not RoHS compliant.
PackageTO-236-3
Voltage40V
Current Rating600mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes FMMT2222ATA technical specifications.
General
| Package/Case | TO-236-3 |
| Collector Emitter Breakdown Voltage | 40V |
| Collector-emitter Voltage-Max | 1V |
| Current Rating | 600mA |
| Lead Free | Contains Lead |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 600mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 330mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | No |
| Transition Frequency | 300MHz |
| Voltage | 40V |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Not Compliant |
Datasheet
Diodes FMMT2222ATA Datasheet
Download the complete datasheet for Diodes FMMT2222ATA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

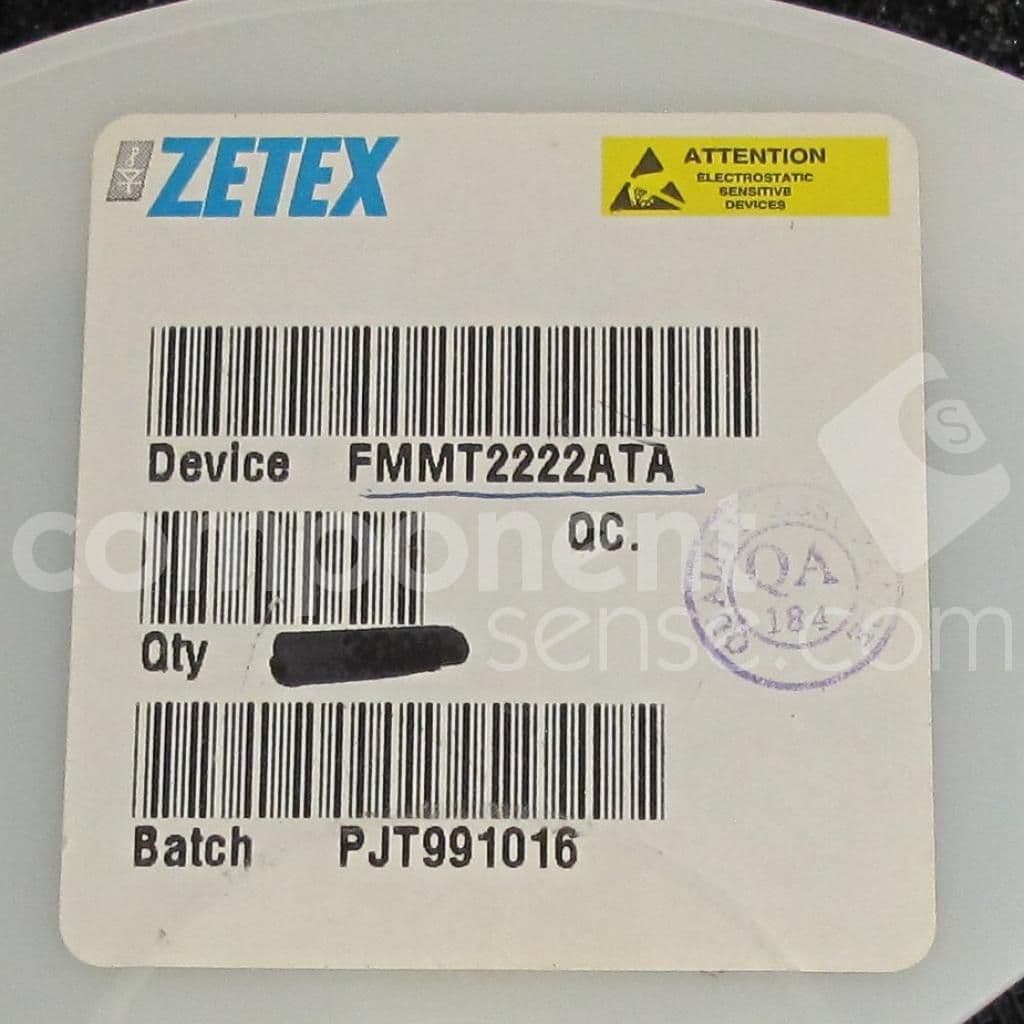

Product Images
