NPN bipolar junction transistor (BJT) for surface mount applications in a SOT-23 package. Features a 100V collector-emitter breakdown voltage (VCEO) and a continuous collector current rating of 1A. Offers a maximum power dissipation of 500mW and a transition frequency of 150MHz. Operates within a temperature range of -55°C to 150°C and is RoHS compliant.
Frequency150MHz
PackageSOT-23
Voltage100V
Current1A
Quick Jump:
Technical Specifications
Diodes FMMT493TA technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 120V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 600mV |
| Continuous Collector Current | 1A |
| Current | 1A |
| Current Rating | 1A |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 150MHz |
| Gain Bandwidth Product | 150MHz |
| Height | 1.1mm |
| hFE Min | 100 |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 1A |
| Max Frequency | 150MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Transition Frequency | 150MHz |
| Voltage | 100V |
| DC Rated Voltage | 60V |
| Weight | 0.000282oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes FMMT493TA Datasheet
Download the complete datasheet for Diodes FMMT493TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

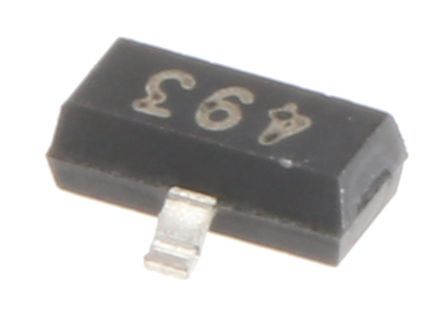

Product Images
