PNP Silicon Bipolar Junction Transistor (BJT) for surface mount applications. Features a 30V collector-emitter breakdown voltage and a continuous collector current of -1A. Offers a maximum power dissipation of 2W and a transition frequency of 100MHz. Packaged in a SOT-223 case, this lead-free component operates from -55°C to 150°C.
Frequency100MHz
PackageSOT-223
Current Rating-1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes FZT549TA technical specifications.
General
Package/Case
SOT-223
Collector Base Voltage (VCBO)
35V
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
-750mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
750mV
Continuous Collector Current
-1A
Current Rating
-1A
Emitter Base Voltage (VEBO)
-5V
Frequency
100MHz
Gain Bandwidth Product
100MHz
Height
1.65mm
Lead Free
Lead Free
Length
6.7mm
Max Breakdown Voltage
30V
Max Collector Current
1A
Max Frequency
100MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
2W
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Transition Frequency
100MHz
DC Rated Voltage
-30V
Weight
0.000282oz
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Diodes FZT549TA Datasheet
Download the complete datasheet for Diodes FZT549TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

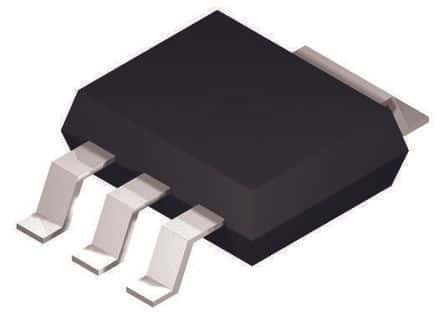

Product Images
