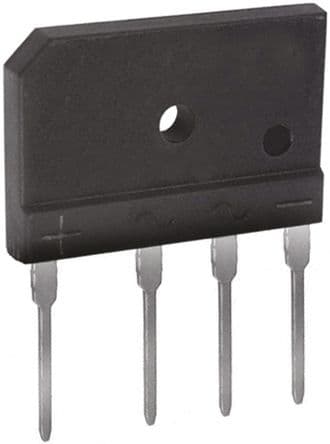

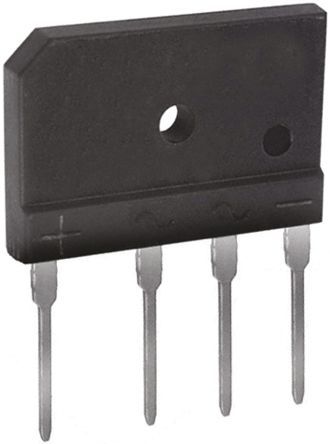

The GBJ1508-F is a single-element bridge rectifier diode with a maximum operating temperature range of -65°C to 150°C. It has a maximum repetitive reverse voltage of 800V and a maximum forward current of 15A. The device is packaged in a through-hole configuration and is compliant with RoHS and Reach SVHC standards. The GBJ1508-F is suitable for use in high-temperature applications and can withstand a maximum surge current of 240A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes GBJ1508-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes GBJ1508-F technical specifications.
| Average Rectified Current | 15A |
| Forward Current | 15A |
| Height | 24.5mm |
| Lead Free | Lead Free |
| Length | 30.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 10uA |
| Max Surge Current | 240A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 240A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Reverse Voltage (DC) | 560V |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Width | 4.8mm |
| RoHS | Compliant |
