Single-phase bridge rectifier diode with a 6A average rectified current and 600V repetitive reverse voltage (Vrrm). Features a 170A surge current capability and low 55pF capacitance. Operates across a wide temperature range from -65°C to 150°C. Through-hole mounting with a plastic GBJ package, this RoHS and REACH SVHC compliant component is designed for reliable power rectification.
Capacitance55pF
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes GBJ606-F technical specifications.
General
Average Rectified Current
6A
Capacitance
55pF
Current Rating
6A
Forward Current
6A
Height
24.5mm
Lead Free
Lead Free
Length
30.3mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Surge Current
170A
Mount
Through Hole
Number of Elements
1
Output Current
6A
Package Quantity
15
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
170A
Radiation Hardening
No
Reach SVHC Compliant
Yes
Reverse Voltage (DC)
420V
RoHS Compliant
Yes
Termination
Through Hole
DC Rated Voltage
600V
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBJ606-F Datasheet
Download the complete datasheet for Diodes GBJ606-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

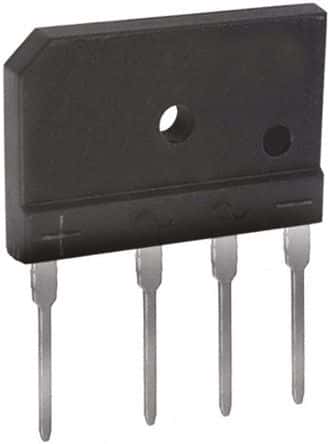

Product Images
