Diodes
GBPC1506W
Bridge Rectifier Diode, 1 Phase, 15A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, GBPC-W, 4 PIN
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes GBPC1506W technical specifications.
General
Height
8mm
Length
28.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Reverse Current
5uA
Max Surge Current
300A
Mount
Through Hole
Package Quantity
100
Packaging
Tray
Reverse Voltage (DC)
420V
RoHS Compliant
Yes
Termination
Through Hole
Weight
0.607065oz
Width
28.8mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBPC1506W Datasheet
Download the complete datasheet for Diodes GBPC1506W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

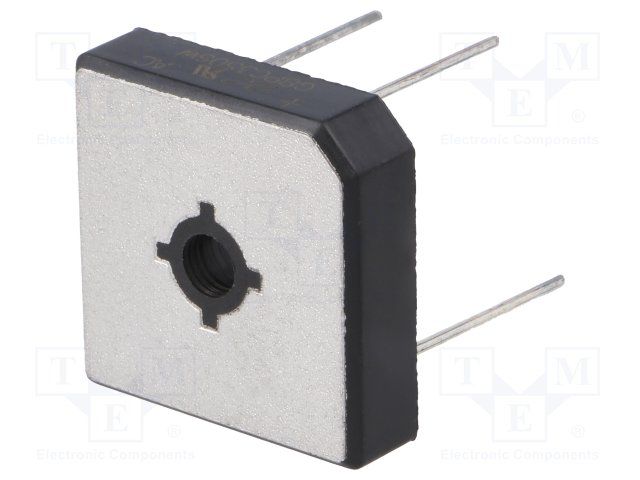

Product Images
