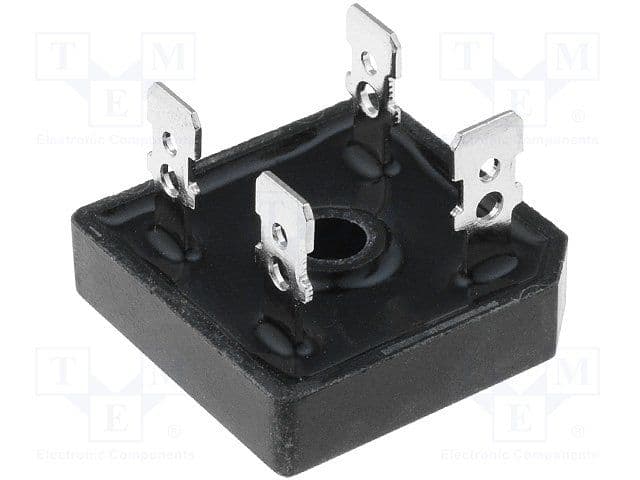

The GBPC2506 is a RoHS compliant bridge rectifier with a current rating of 25A and a maximum operating temperature of 150°C. It is packaged in a GBPC-4 plastic package and available in quantities of 100 per tray. The device is suitable for use in a wide range of applications, including those requiring high surge currents of up to 300A. The GBPC2506 has a maximum reverse leakage current of 5uA and is designed to operate within a temperature range of -65°C to 150°C.
Checking distributor stock and pricing after the page loads.
Diodes GBPC2506 technical specifications.
| Current Rating | 25A |
| Height | 8mm |
| Length | 28.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 300A |
| Package Quantity | 100 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Width | 28.8mm |
| RoHS | Compliant |
