General Purpose Rectifier Bridge, 25A average rectified current, 560V reverse voltage. Features 300A surge current capability, operating temperature range of -65°C to 150°C, and a maximum reverse current of 5uA. Designed for through-hole mounting with screw termination. This component is RoHS and REACH SVHC compliant.
MountingThrough Hole, Screw
Quick Jump:
Technical Specifications
Diodes GBPC2508W technical specifications.
General
| Average Rectified Current | 25A |
| Height | 8mm |
| Length | 28.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Current | 5uA |
| Max Surge Current | 300A |
| Mount | Through Hole, Screw |
| Number of Elements | 1 |
| Package Quantity | 100 |
| Packaging | Tray |
| Peak Non-Repetitive Surge Current | 300A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Reverse Voltage (DC) | 560V |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Weight | 0.607065oz |
| Width | 28.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes GBPC2508W Datasheet
Download the complete datasheet for Diodes GBPC2508W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

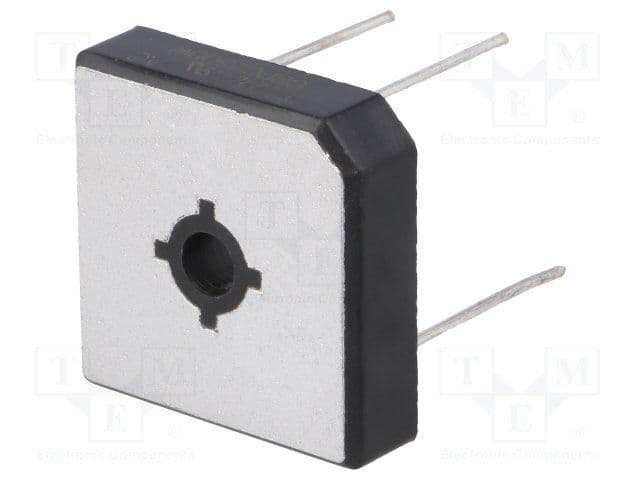

Product Images
