Bridge rectifier diode, single-phase, 35A average rectified current, 400V maximum repetitive reverse voltage (Vrrm). Features a 400A maximum surge current, 5µA maximum reverse current, and 280V DC reverse voltage. Through-hole mounting with a 4-pin plastic package, measuring 28.8mm x 28.8mm x 8mm. Operates from -65°C to 150°C, is lead-free, and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes GBPC3504W technical specifications.
General
Average Rectified Current
35A
Height
8mm
Lead Free
Lead Free
Length
28.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
5uA
Max Surge Current
400A
Mount
Through Hole
Package Quantity
100
Packaging
Tray
Reverse Voltage (DC)
280V
RoHS Compliant
Yes
Termination
Through Hole
Weight
0.607065oz
Width
28.8mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBPC3504W Datasheet
Download the complete datasheet for Diodes GBPC3504W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

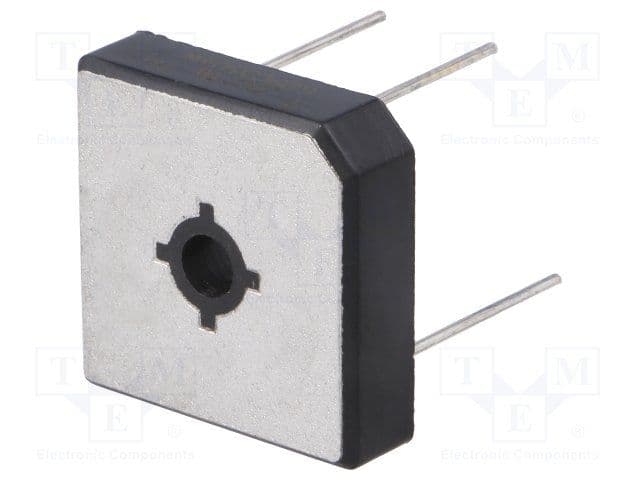

Product Images
