Single-phase bridge rectifier diode with a 35A average rectified current and 1000V maximum repetitive reverse voltage (Vrrm). Features a 700V DC reverse voltage, 5µA maximum reverse current, and 400A maximum surge current. Operates across a temperature range of -65°C to 150°C. This through-hole mount component is housed in a plastic GBPC-W package, measuring 28.8mm in length and width, and 8mm in height. It is lead-free and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes GBPC3510W technical specifications.
General
Average Rectified Current
35A
Height
8mm
Lead Free
Lead Free
Length
28.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Surge Current
400A
Mount
Through Hole
Package Quantity
100
Packaging
Tray
Reverse Voltage (DC)
700V
RoHS Compliant
Yes
Termination
Through Hole
Weight
0.607065oz
Width
28.8mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBPC3510W Datasheet
Download the complete datasheet for Diodes GBPC3510W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

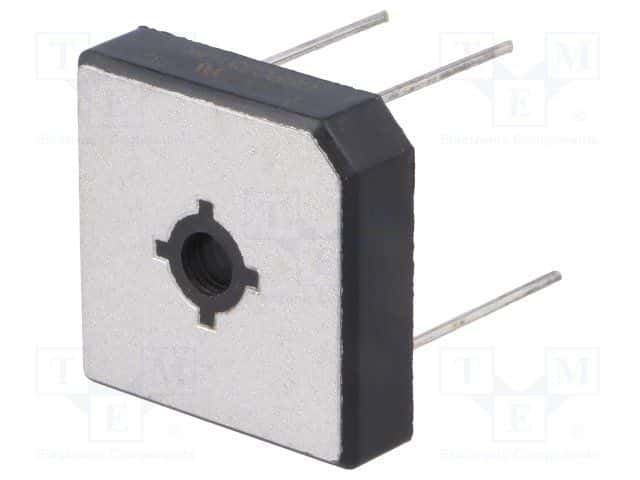

Product Images
