Single-phase bridge rectifier diode with a 4A average rectified current and 600V repetitive reverse voltage. Features a 150A maximum forward surge current, 5µA maximum reverse current, and operates from -55°C to 150°C. This silicon component offers through-hole and surface mount termination, is RoHS compliant, and comes in a 4-pin plastic package.
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Diodes GBU406 technical specifications.
General
| Average Rectified Current | 4A |
| Forward Current | 4A |
| Height | 18.8mm |
| Lead Free | Lead Free |
| Length | 22.3mm |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 5uA |
| Max Surge Current | 150A |
| Mount | Through Hole, Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 150A |
| Radiation Hardening | No |
| Reverse Voltage (DC) | 420V |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Weight | 0.120073oz |
| Width | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes GBU406 Datasheet
Download the complete datasheet for Diodes GBU406 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

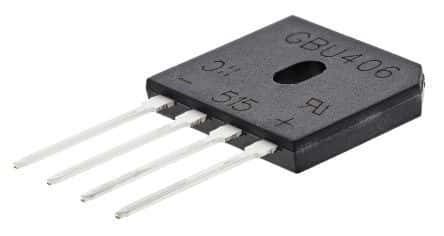

Product Images
