General purpose bridge rectifier with a 4A average rectified current and 1kV DC rated voltage. Features a 150A peak non-repetitive surge current and a maximum reverse current of 5µA. Operates across a temperature range of -55°C to 150°C. This component offers through-hole and surface mount termination options.
Capacitance80pF
Current Rating4A
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Diodes GBU410 technical specifications.
General
Average Rectified Current
4A
Capacitance
80pF
Current Rating
4A
Forward Current
4A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Surge Current
150A
Mount
Through Hole, Surface Mount
Number of Elements
1
Output Current
4A
Package Quantity
20
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
150A
Radiation Hardening
No
Reverse Voltage (DC)
700V
RoHS Compliant
Yes
Termination
Through Hole
DC Rated Voltage
1kV
Weight
0.120073oz
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBU410 Datasheet
Download the complete datasheet for Diodes GBU410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

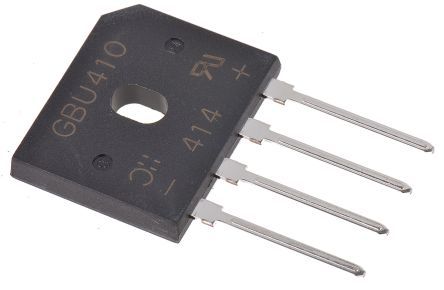

Product Images
