Diodes
MB154
Bridge Rectifier Diode, 1 Phase, 15A, 400V V(RRM), Silicon, ROHS COMPLIANT, METAL, MB, 4 PIN
Current Rating15A
MountingScrew
Quick Jump:
Technical Specifications
Diodes MB154 technical specifications.
General
Average Rectified Current
15A
Current Rating
15A
Forward Current
15A
Height
11.23mm
Lead Free
Exempt
Length
28.7mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Surge Current
300A
Mount
Screw
Number of Elements
1
Output Current
15A
Package Quantity
100
Packaging
Bulk
Peak Non-Repetitive Surge Current
300A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
400V
Width
28.7mm
Compliance
RoHS
Compliant
Datasheet
Diodes MB154 Datasheet
Download the complete datasheet for Diodes MB154 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

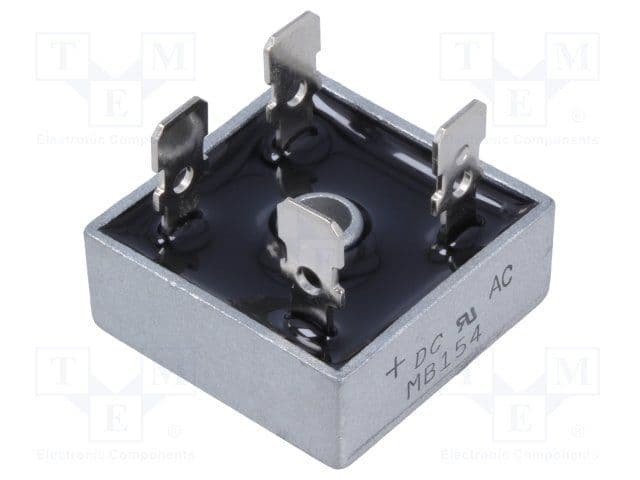

Product Images
