General purpose rectifier diode featuring 80V repetitive reverse voltage and 250mA forward current. This silicon diode offers a fast 4ns reverse recovery time and a low 3.5pF capacitance. Designed for surface mounting, it is housed in an ultra-small SOT-523 plastic package with dimensions of 1.6mm length, 0.8mm width, and 0.75mm height. Maximum power dissipation is 150mW, with an operating temperature range of -65°C to 150°C. This RoHS compliant component is supplied on tape and reel.
PackageSOT-523
Capacitance3.5pF
Current Rating250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes MMBD4448HTA-7-F technical specifications.
General
| Average Rectified Current | 250mA |
| Capacitance | 3.5pF |
| Package/Case | SOT-523 |
| Current Rating | 250mA |
| Forward Current | 250mA |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 150mW |
| Max Repetitive Reverse Voltage (Vrrm) | 80V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 80V |
| Max Surge Current | 4A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 4A |
| Radiation Hardening | No |
| Reverse Recovery Time | 4ns |
| Reverse Voltage (DC) | 80V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 80V |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes MMBD4448HTA-7-F Datasheet
Download the complete datasheet for Diodes MMBD4448HTA-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

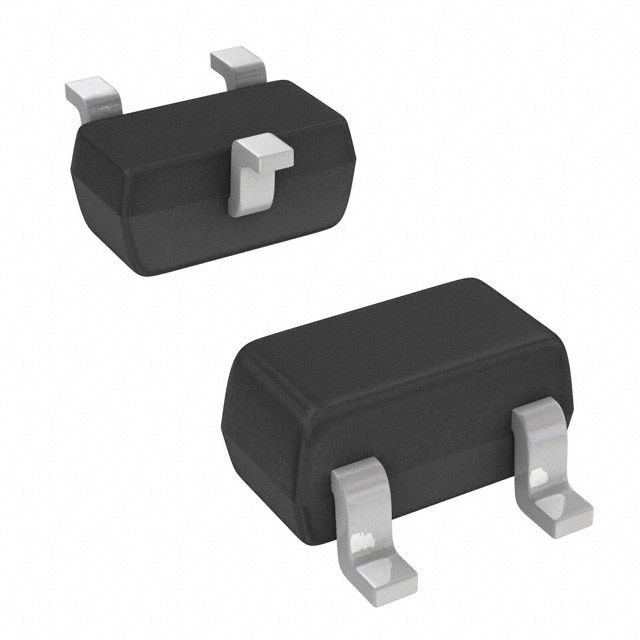

Product Images
