NPN bipolar junction transistor for surface mount applications. Features a 300V collector-emitter breakdown voltage and 500mA continuous collector current. Operates with a 50MHz transition frequency and offers a minimum DC current gain (hFE) of 40. Encased in a compact SOT-23 plastic package, this RoHS compliant component is rated for a maximum power dissipation of 300mW and operates across a temperature range of -55°C to 150°C.
Frequency50MHz
PackageSOT-23
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes MMBTA42-7-F technical specifications.
General
Package/Case
SOT-23
Collector Base Voltage (VCBO)
300V
Collector Emitter Breakdown Voltage
300V
Collector Emitter Saturation Voltage
500mV
Collector Emitter Voltage (VCEO)
300V
Collector-emitter Voltage-Max
500mV
Continuous Collector Current
500mA
Current Rating
200mA
Emitter Base Voltage (VEBO)
6V
Frequency
50MHz
Gain Bandwidth Product
50MHz
Height
1mm
hFE Min
40
Lead Free
Lead Free
Length
3.05mm
Max Breakdown Voltage
300V
Max Collector Current
500mA
Max Frequency
50MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Mount
Surface Mount
Number of Elements
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
300mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Termination
SMD/SMT
Transition Frequency
50MHz
DC Rated Voltage
300V
Weight
0.000282oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Diodes MMBTA42-7-F Datasheet
Download the complete datasheet for Diodes MMBTA42-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

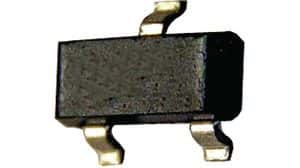

Product Images
