PNP Silicon Bipolar Junction Transistor (BJT) for small signal applications. Features a 40V Collector-Emitter Breakdown Voltage (VCEO) and a 200mA Maximum Collector Current (IC). Operates with a 250MHz transition frequency and offers a minimum hFE of 60. Housed in an ultra-small, 6-lead plastic SOT-563 package for surface mounting. RoHS compliant and lead-free.
Frequency250MHz
PackageSOT-563
Current Rating-200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes MMDT3906VC-7 technical specifications.
General
| Package/Case | SOT-563 |
| Collector Base Voltage (VCBO) | 40V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | -400mV |
| Collector Emitter Voltage (VCEO) | 40V |
| Collector-emitter Voltage-Max | 400mV |
| Current Rating | -200mA |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 250MHz |
| Gain Bandwidth Product | 250MHz |
| Height | 0.6mm |
| hFE Min | 60 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 200mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Transition Frequency | 250MHz |
| DC Rated Voltage | -40V |
| Weight | 0.000106oz |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes MMDT3906VC-7 Datasheet
Download the complete datasheet for Diodes MMDT3906VC-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

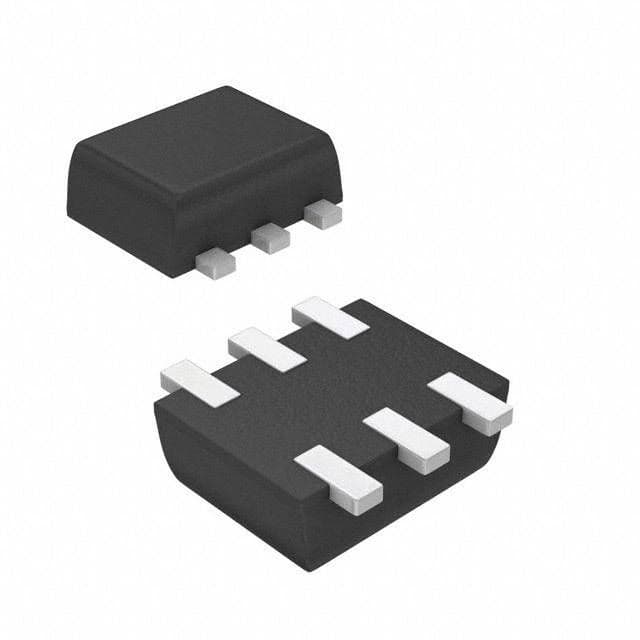

Product Images
