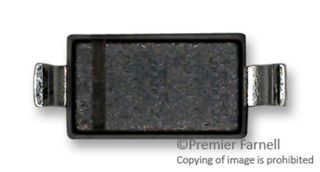

Surface mount Zener diode with a 6.8V DC rated voltage and 5% voltage tolerance. Features 500mW power dissipation, 42pF capacitance, and 5 Ohm impedance. Operating temperature range from -65°C to 150°C. Packaged in a compact SOD-123-2 plastic package, this RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes MMSZ5235B-7-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes MMSZ5235B-7-F technical specifications.
| Capacitance | 42pF |
| Package/Case | SOD-123-2 |
| Height | 1.35mm |
| Impedance | 5R |
| Lead Free | Lead Free |
| Length | 3.85mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 3uA |
| Max Reverse Leakage Current | 3uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5% |
| DC Rated Voltage | 6.8V |
| Voltage Tolerance | 5% |
| Weight | 0.000353oz |
| Width | 1.7mm |
| Working Voltage | 6.8V |
| Zener Current | 3uA |
| Zener Voltage | 6.8V |
| RoHS | Compliant |
