Surface mount Zener diode with a 10V working voltage and 5% tolerance. Features 500mW power dissipation, 17 Ohm impedance, and a maximum reverse leakage current of 3uA. Operates across a temperature range of -65°C to 150°C. Packaged in a compact SOD-123-2 plastic package, this RoHS compliant component is supplied on tape and reel.
PackageSOD-123-2
Voltage Rating10V
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Diodes MMSZ5240B-7-F technical specifications.
General
Package/Case
SOD-123-2
Forward Current
10mA
Height
1.35mm
Impedance
17R
Lead Free
Lead Free
Length
3.85mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Max Reverse Current
3uA
Max Reverse Leakage Current
3uA
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
Reverse Voltage
8V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
5%
DC Rated Voltage
10V
Voltage Tolerance
5%
Weight
0.000353oz
Width
1.7mm
Working Voltage
10V
Zener Current
3uA
Zener Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Diodes MMSZ5240B-7-F Datasheet
Download the complete datasheet for Diodes MMSZ5240B-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

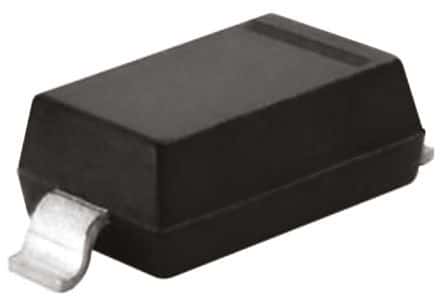

Product Images
