Surface mount Zener diode with a 15V DC rated voltage and 5% voltage tolerance. Features 500mW power dissipation, 16 Ohm impedance, and a maximum reverse leakage current of 100nA. Packaged in a compact SOD-123-2 plastic case, measuring 3.85mm x 1.7mm x 1.35mm. Operates across a wide temperature range from -65°C to 150°C and is RoHS compliant.
PackageSOD-123-2
Voltage Rating15V
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Diodes MMSZ5245B-7-F technical specifications.
General
Package/Case
SOD-123-2
Height
1.35mm
Impedance
16R
Lead Free
Lead Free
Length
3.85mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
11V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
5%
DC Rated Voltage
15V
Voltage Tolerance
5%
Weight
0.000353oz
Width
1.7mm
Working Voltage
15V
Zener Current
100nA
Zener Voltage
15V
Compliance
RoHS
Compliant
Datasheet
Diodes MMSZ5245B-7-F Datasheet
Download the complete datasheet for Diodes MMSZ5245B-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

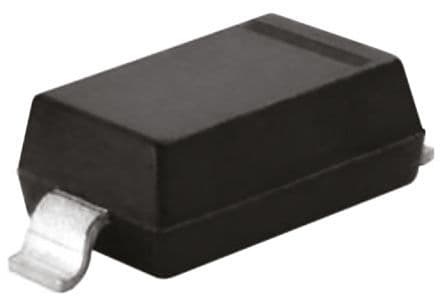

Product Images
