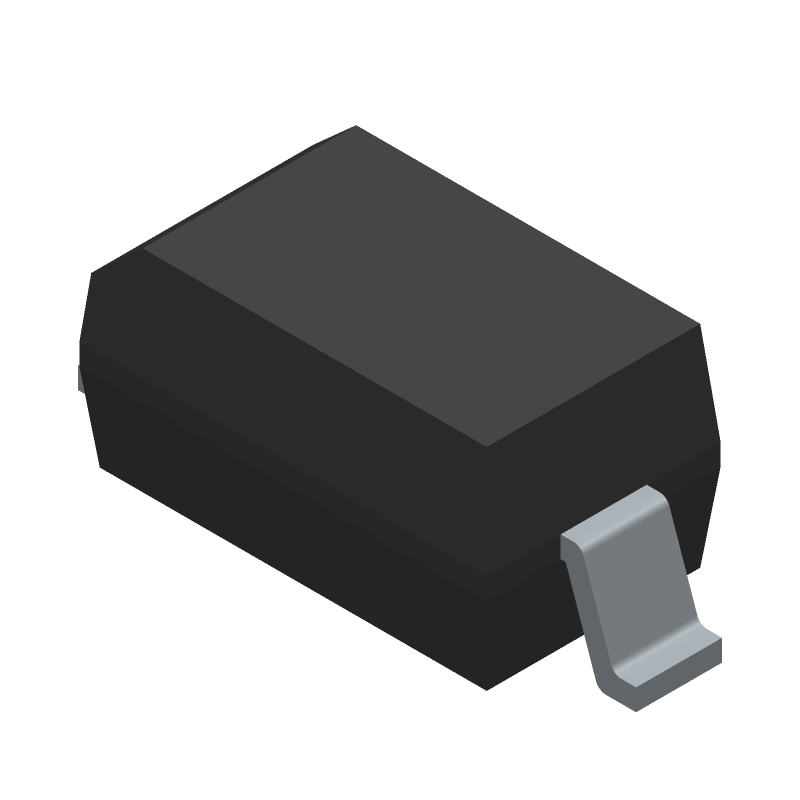

Unidirectional Zener Diode, 39V DC Rated Voltage with 5% tolerance. Features 500mW power dissipation and 80 Ohm impedance. Encased in a compact SOD-123-2 plastic package for surface mounting. Operates across a wide temperature range from -65°C to 150°C. Lead-free and RoHS compliant.
Sign in to ask questions about the Diodes MMSZ5259B-7-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes MMSZ5259B-7-F technical specifications.
| Package/Case | SOD-123-2 |
| Height | 1.35mm |
| Impedance | 80R |
| Lead Free | Lead Free |
| Length | 3.85mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5% |
| DC Rated Voltage | 39V |
| Voltage Tolerance | 5% |
| Weight | 0.000353oz |
| Width | 1.7mm |
| Working Voltage | 39V |
| Zener Current | 100nA |
| Zener Voltage | 39V |
| RoHS | Compliant |
