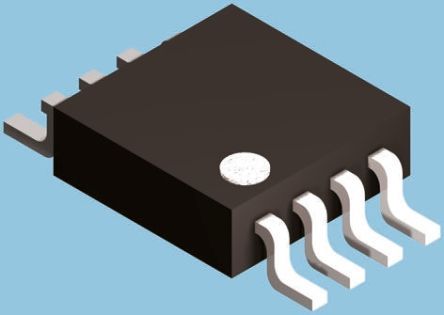

Adjustable positive DC/DC switching regulator with a maximum switching frequency of 1500kHz. Features a 2A maximum output current and an adjustable output voltage range from 600mV to 5.5V. Operates from a 2.7V to 5.5V input voltage, achieving up to 95% efficiency. Housed in a lead-free, RoHS compliant SOP-8 package for surface mounting, with a compact 5mm x 4mm x 1.75mm profile.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes PAM2310BECADJR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes PAM2310BECADJR technical specifications.
| Package/Case | SOP |
| Efficiency | 95% |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 600mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 42uA |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Weight | 0.030018oz |
| Width | 4mm |
| RoHS | Compliant |
