Adjustable positive boost switching regulator with a maximum output current of 5.5A. Features a 520kHz switching frequency and operates from a 2.7V to 5.5V input voltage range. Delivers up to 24V output voltage with 90% efficiency. Packaged in a lead-free, RoHS compliant SOP-8 surface mount package.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes PAM2423AECADJR technical specifications.
General
| Package/Case | SOP |
| Color | Black |
| Diameter | 0.374inch |
| Efficiency | 90% |
| Height | 0.449inch |
| Lead Free | Lead Free |
| Material | Metal |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5.5A |
| Max Output Voltage | 24V |
| Min Output Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 5.5A |
| Output Type | Adjustable |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | KU |
| Synchronous Rectifier | No |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PAM2423AECADJR Datasheet
Download the complete datasheet for Diodes PAM2423AECADJR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

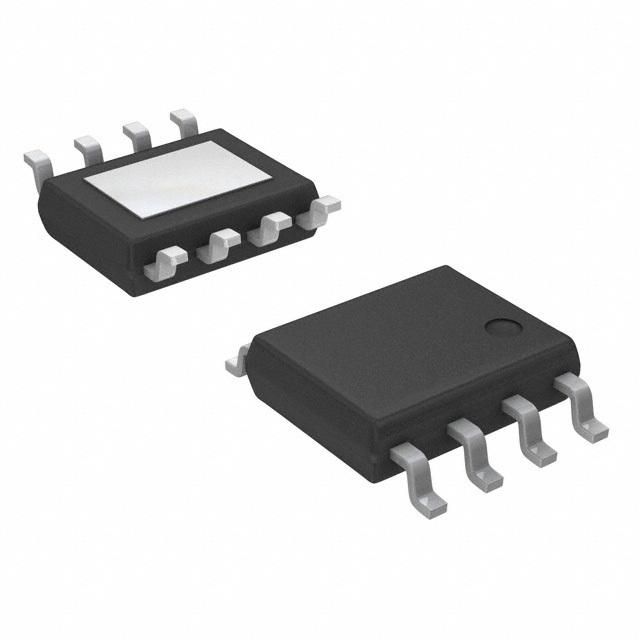

Product Images
