The PAM8603ANHR is a surface mount audio amplifier from Diodes. It operates over a temperature range of -20°C to 85°C and can supply up to 3W of output power. The amplifier is available in a 24-pin SSOP package and is packaged in tape and reel quantities of 2500 units. The PAM8603ANHR is RoHS compliant and does not offer radiation hardening. It has a power supply rejection ratio of 70dB.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes PAM8603ANHR technical specifications.
General
| Package/Case | SSOP |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Power | 3W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PAM8603ANHR Datasheet
Download the complete datasheet for Diodes PAM8603ANHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

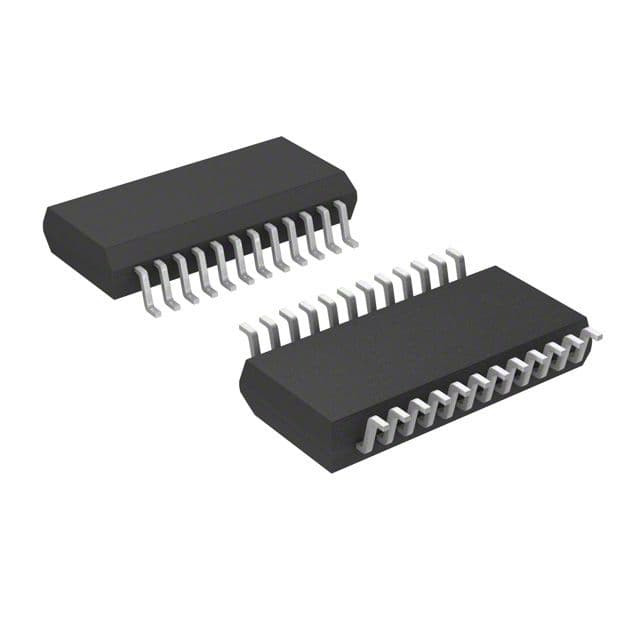

Product Images
