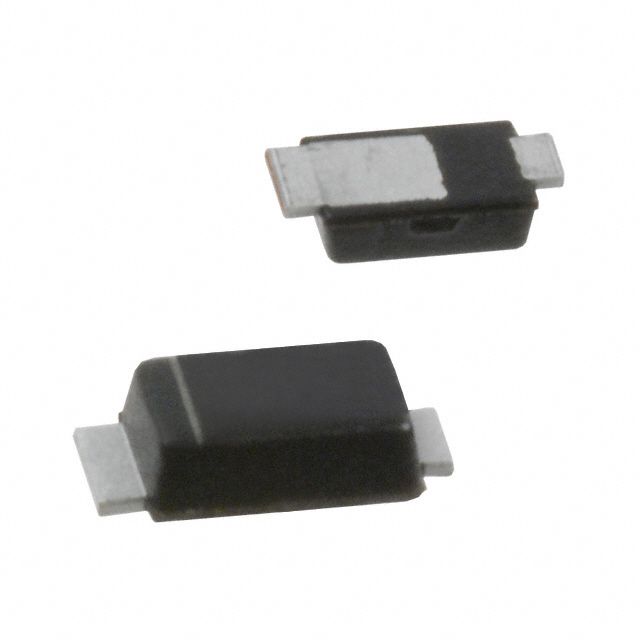

The PD3Z284C3V3-7 is a Zener diode with a Zener voltage of 3.3V and a tolerance of 6%. It has a maximum power dissipation of 500mW and a maximum reverse current of 5uA. The diode is available in a 2-pin PowerDI package and is RoHS compliant. It operates over a temperature range of -65°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes PD3Z284C3V3-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes PD3Z284C3V3-7 technical specifications.
| Height | 0.65mm |
| Impedance | 95R |
| Length | 2.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 6% |
| Voltage Tolerance | 6% |
| Width | 1.25mm |
| Zener Current | 5uA |
| Zener Voltage | 3.3V |
| RoHS | Compliant |
